Warranty |
Three Year Limited Warranty
Technical support and software update |
|
Dome |

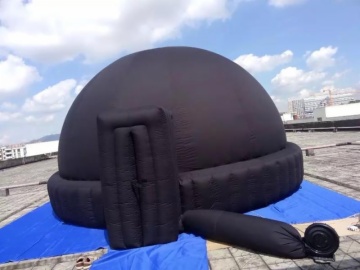

VS-503 Inflatable and portable type. 5m diameter and 3m height. Outside color black and inside color grey. With cusion for visitor's sit,anti-inflammable,suitable for transportation,air inflation machine with noise not more than 50DB.the equipment should be durable use,easy transportion and assembly etc. |
|
Projector resolution |
1920x1200, Full-HD |
|
Contrast |
10000:1 or more |
|
LCD diaplay |
0.76" |
|
Brightness |
6000 lumens or more |
|
Lift time |
20000 hours |
|

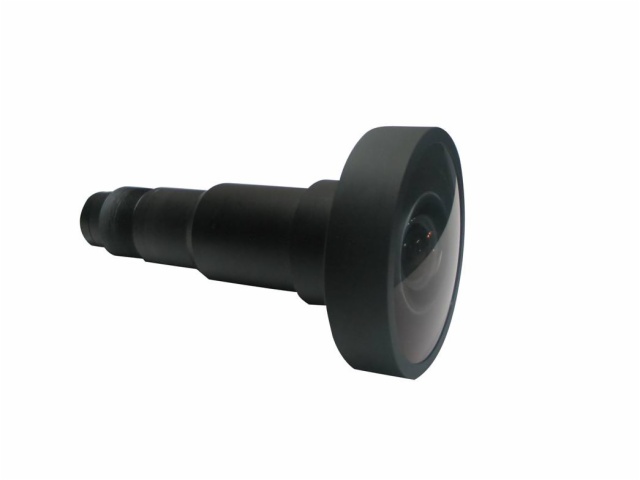

Fisheye lens |
Special customized fisheye lens suitable for laser projector, 176°full dome lens |
|
Computer as controller of the central system |
CPU: I3,
ASUS motherboard
Hard disc: 500G,
Memmmory: 4G,
with touch screen panel,size not less than 10.1inches, resolution not less than 1920x1080 |
|

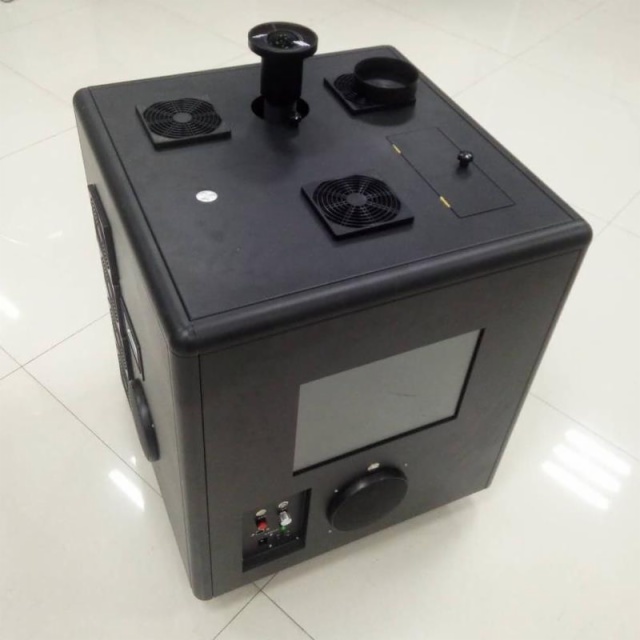

Cabinet |
Color:black,size not less than 600x600x600mm,stell material,with wheels,humanized and reasonable design. With Emergency lighting. Central control panel with switch on/off laser projetor, comouter, enough connection ports for power supply,USB,internet RJ-45 ETC |
|
Audio system with amplifier |
5-inch junnuo CS-518 speakers.
RZ 8602 power amplifier.
Premium 2.1 portable music system with built-in subwoofer.
Dual" 2 full range drivers with 5.25" Sub for incredibly detailed sound.
130 watts of digital system power with Advanced DSP E.
with Bluetooth wireless model.
Remote control conveniently controls volume/mute and streaming music sources while being charged. |
|
Audio compressor module |
Integrated in computer motherboard |
|
Common channel network controller |
AOPRE D805F industrial network port switch,4K lightning protection, protection class IP40. |
|

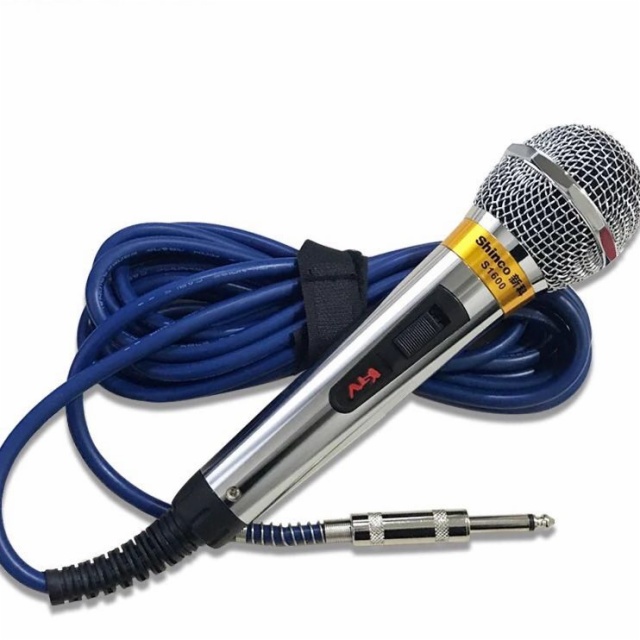

Microphones |
Shinco S1600 microphones,frequency response from 8Hz to 15KHz. |
|
Network controller |
Integrated in ASUS motherboard |
|
Feedback Suppressor |
Integrated in power amplifier |
|
Wireless earphone and microphone |
PICUN P60 wireless earphone,V4.1 bluetooth version,Connection distance 10 meters.
NONTAUS wireless microphone, Connection distance 10 meters |
|
Wifi router |
TP-LINK TL-WR702N wifi router,150 megabits wireless transmission, wireless network support frequency 2.4G. |
|
Controller |
Integrated in Cabinet |
|
Bracket for projector |
Integrated in Cabinet |
|
TABLET |
Galaxy tab S3 |
|

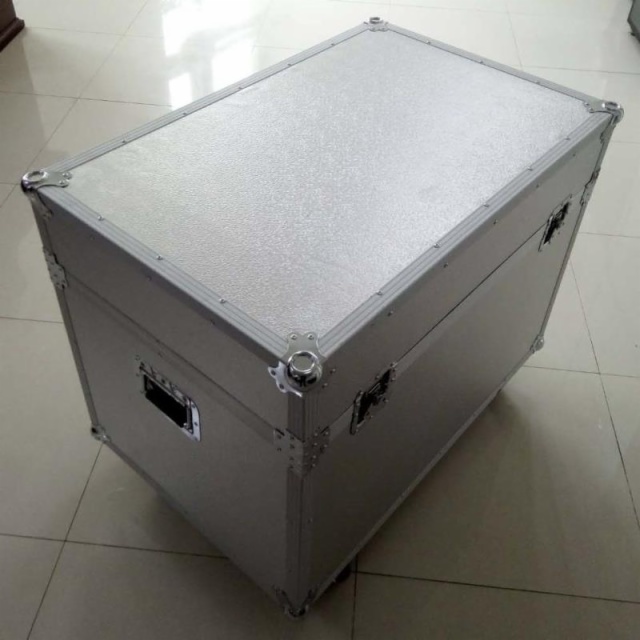

Box |
Packing box 3 pieces |
|
SOFTWARE |
DOME-USE BROADCASTING SOFTWARE, special dome-use wireless control software for tablet choice or pre-setting uses,operator can broadcast the programme through the tablet, WWT, Stellarium |
DISPLAY
WHITE BOARD AND SCREEN
