Interactive Whiteboard--INTERACTIVE WHITE BOARD, TB-680

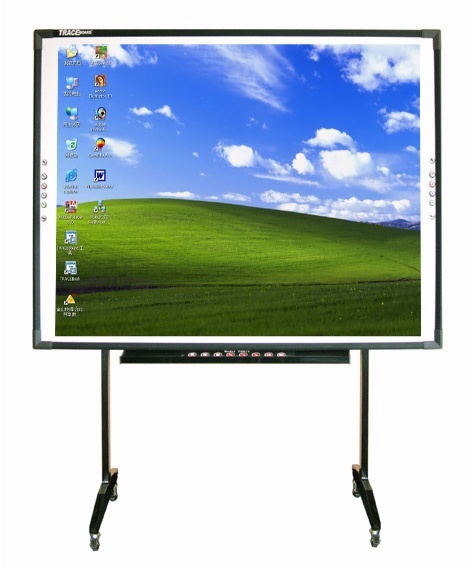

Interactive Whiteboard TB-680

Select All

Item Code:TB-680 Features:Lecturers can discuss face to face with the audiences using the interactive whiteboard. Notes, explanations, illustrations can be written on the whiteboard. You may revise, note and erase, save, print, e-mail your notes into Windows versions of Microsoft PowerPoint, Word, and Excel. Of course you can record all screen activity and audio as a digital video file that are saved in AVI format (Windows operating systems) for replay.

Description

Overall introduction

Lecturers can discuss face to face with the audiences using the interactive whiteboard. Notes, explanations, illustrations can be written on the whiteboard. You may revise, note and erase, save, print, e-mail your notes into Windows versions of Microsoft PowerPoint, Word, and Excel. Of course you can record all screen activity and audio as a digital video file that are saved in AVI format (Windows operating systems) for replay. This can let students study easier and more active.

Physical Specifications

Size

Interactive Whiteboard

166cm W×127cm H×1.8cmD
82″ diagonal (209cm)

Active Screen Area

158.6cm W×119.6cm H
78″ diagonal (198.6 cm)

Weight

Interactive Whiteboard

22kg(the wall-mount included)

Shipping Size

Carton

178cm W×140cm H×18cm D

Shipping Weight

Carton and Contents

33kg

All dimensions +/-2mm. All weights+/-1kg

---------------------------------------------------------------------------------------------------------------------------

Standard Features

Software

TRACETool & TRACEBook

Pen Tray

20 touch shortcut keys

Screen Surface

The hard-coated polyester surface is tear proof, compatible with
Wet-erase markers and is easily cleaned with cleanser.

Resolution

4096*4096

Active distance to board

1.5cm

Process speed

240 lattice /s

Digitizing technology

Electromagnetic sensing

Computer connection

USB, RF (optional)

Cable

10M

Power Requirements

Power is obtained from the computer directly through the USB cable
Power consumption is less than 1 watts.

Installation

Wall-Mount Bracket; Floor-stand (optional)

---------------------------------------------------------------------------------------------------------------------------

Pen

Size

13.2cm*1.9cm

Battery

AA battery *1

Life of battery

>12 Months. (Difference from the brand etc)

Pressure

>10g

Weight

160g

---------------------------------------------------------------------------------------------------------------------------

Storage and Operating Specifications

Storage

-40oC to 60oC with up to 95% humidity non-condensing

Operation

-10oC to 50oC with up to 90% humidity non-condensing

Certifications

Low temperature may reduce the capability and shorten the using life of battery.

Warranty

ISO9001 CE

Installation

Five-year limited equipment warranty upon Registration. See warranty document for details.

---------------------------------------------------------------------------------------------------------------------------

Optional Accessories

TB 600

Mobile floor stand, height-adjustable from 185cm to 220cm

RS-232

20M cable
